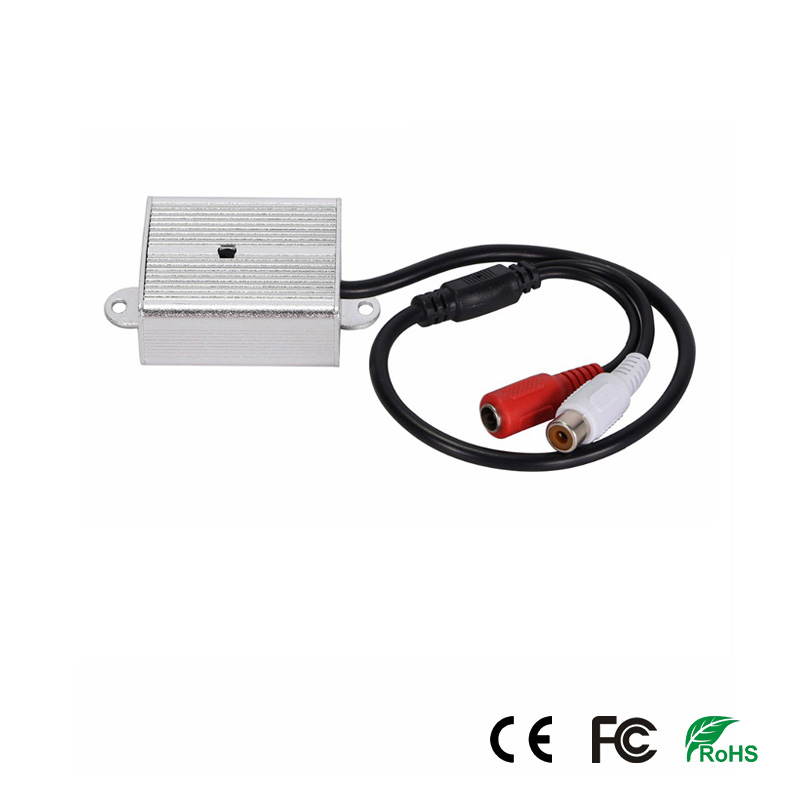

Audio Pick-up

SAP-609C

Audio pickup for CCTV System
Sensitivity adjustable
Product description: ◆ Audio Montor Range:5m2-80m2 ◆ DSP built-in noise reduction circuit ◆ AGC circuit built-in gain ◆ Tone processing circuit
INQUIRY

Model	SAP-609C
Audio Monitoring Range	5m2-80m2
Sensitivity	-47DB
Work Voltage	4-14V
Current Consumption	5mA-60mA
Frequency Range	100~~5kHz
Frequency Response	2.5dB
Max output Voltage	5VPP
Output Impedance	600Ω
Working Temperature	-10°C to +70°C
Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
