Audio Pick-up

  • SAP-601S
  • SAP-601S
  • SAP-601S
SAP-601SSAP-601SSAP-601S

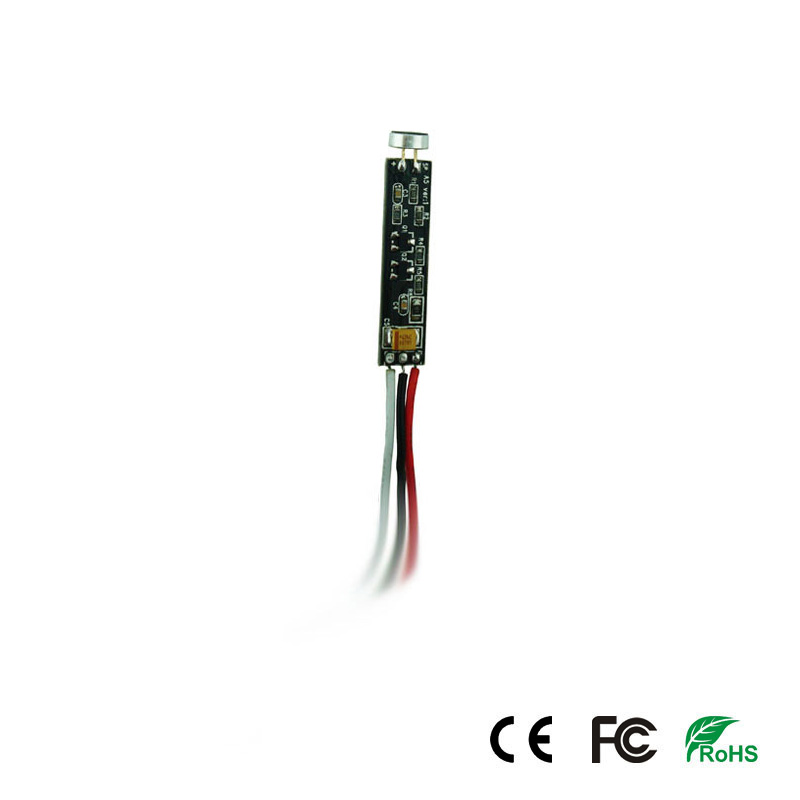

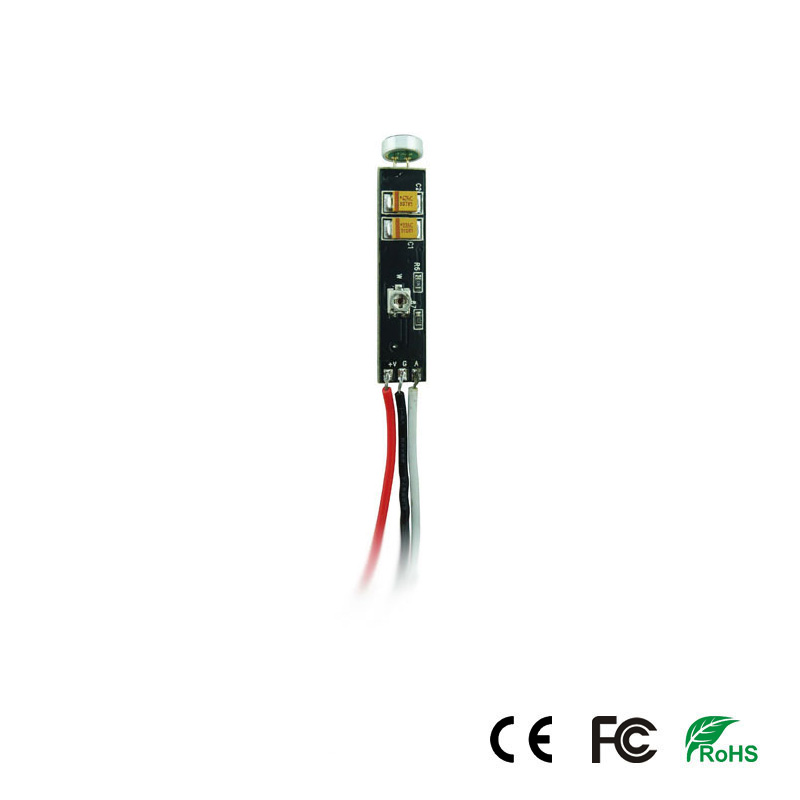

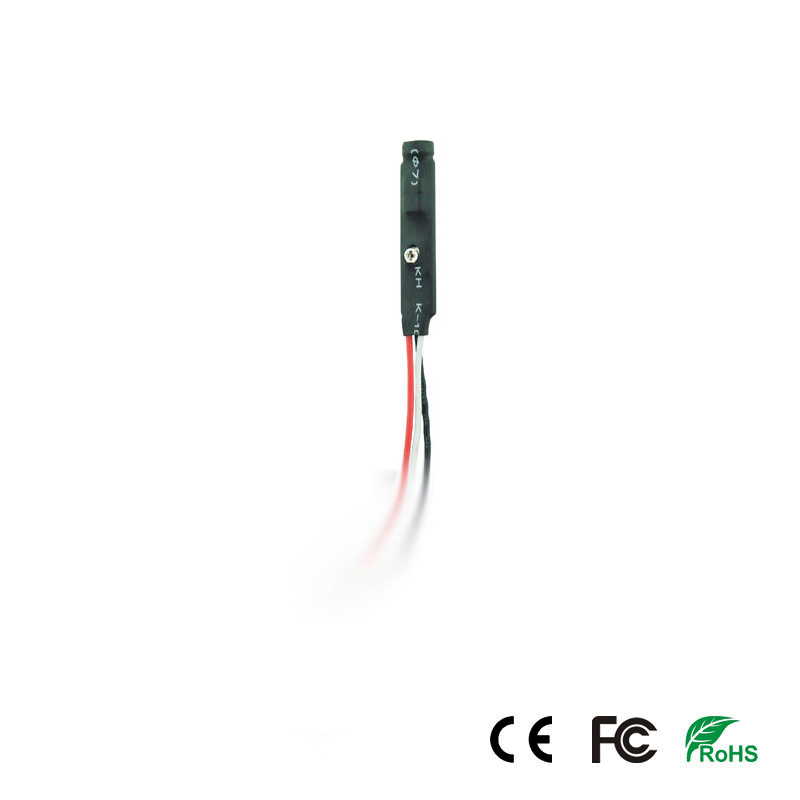

SAP-601S

  • Mini High Sensitivity Hidden Audio Pickup for CCTV System
  • Audio Montor Range:30m2with better quality
  • Product description: ◆ Sensitivity adjustable ◆ DSP built-in noise reduction circuit ◆ AGC circuit built-in gain ◆ Tone processing circuit
  • INQUIRY
Model

SAP-601S

Audio Monitoring Range

30m2

Connector Type

"+"Red power supply,"-" Black power supply, S+ White signal

Sensitivity

-47DB

Work Voltage

4-14V

Current Consumption

5mA-60mA

Frequency Range

100~~5kHz

Frequency Response

2.5dB

Max output Voltage

5VPP

Output Impedance

600Ω

Working Temperature

-10°C to +70°C

Size

6*14mm

Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
