Audio Pick-up

  • SAP-605
  • SAP-605
  • SAP-605
  • SAP-605
  • SAP-605
SAP-605SAP-605SAP-605SAP-605SAP-605

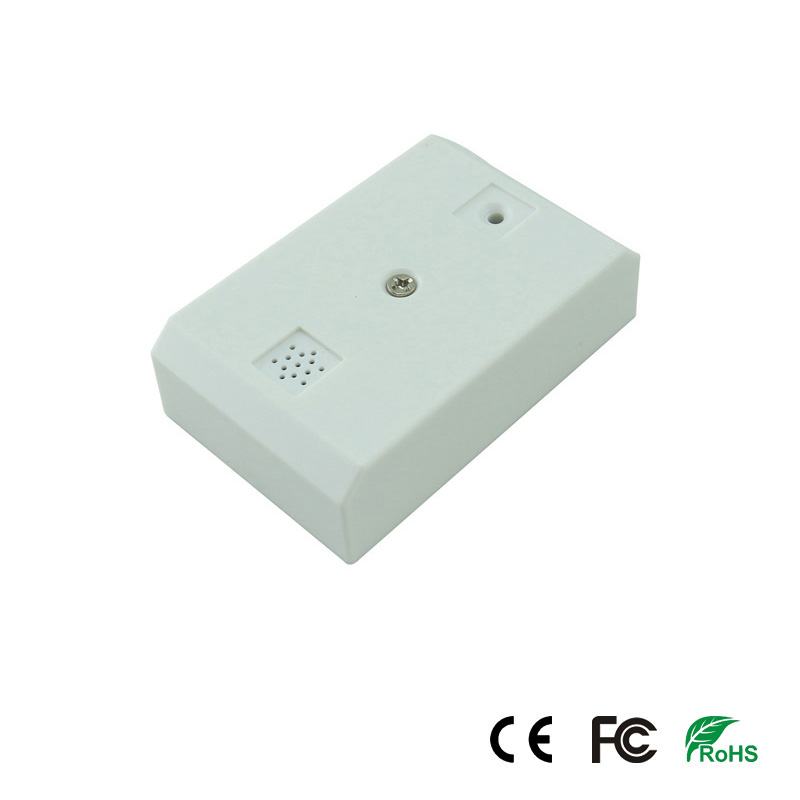

SAP-605

  • Audio pickup for CCTV System
  • Audio Montor Range:5m2-80m2
  • Product description: ◆ DSP built-in noise reduction circuit ◆ AGC circuit built-in gain ◆ Tone processing circuit
  • INQUIRY
Model

SAP-605

Audio Monitoring Range

5m2-80m2

Sensitivity

-47DB

Work Voltage

4-14V

Current Consumption

5mA-60mA

Frequency Range

100~~5kHz

Frequency Response

2.5dB

Max output Voltage

5VPP

Output Impedance

600Ω

Working Temperature

-10°C to +70°C

Monitoring of: 10 m2 100m2 Signal transmission line With a core line with the best shield
