SW-200W-12G

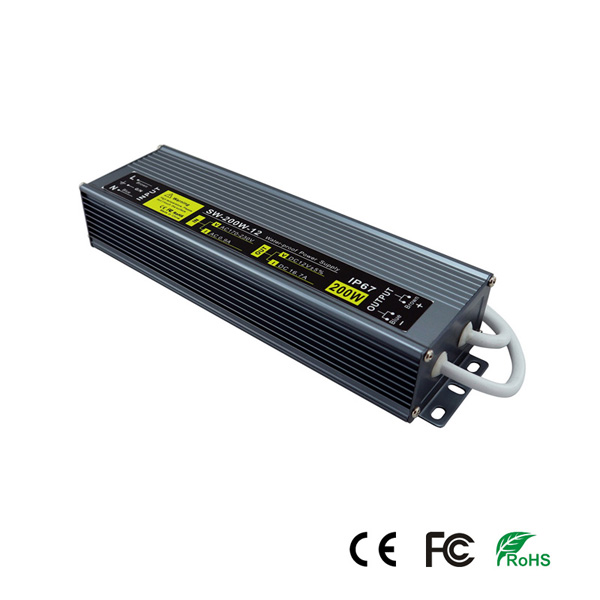

  • 200W Water-proof Power Supply
  • DC12V 16.7A
  • 100% full load burn-in test
  • Product description: Waterproof SMPS is designed to apply to LED application that is installed in water or humidity environment. The IP rating is IP67. Waterproof power supply can be installed in shallow water.
  • INQUIRY

Features:
200W Single Output Water-proof Power Supply
Output voltage & current: DC12V  16.7A
Input voltage range: 180~264VAC
Built in EMI filter with tiny ripple
100% full load burn-in test
Air Cooling
Protection: Short circuit/ Overload/ Over voltage/ Over temperature
Built-in constant current limiting circuit (C.C.+C.V.mode)


Specification:

Model SW-200W-12G
Output DC output Voltage 12V±1%
Output Current Range 0-16.7A
Wave and Noise 120mVp-p
DC output Power 200W
Efficiency 85%
DC Voltage Adjustable Scope (at full load)≦0.5%
Input Voltage Range 85~264VAC      47-63Hz
Input Current 0.9A/230V
Leakage Current <1mA/ 240VAC
Inrush Current Cold start 36A/ 230VAC
Protection Over-load 105%~135%,  Protection type: Constant current limiting,
recovers automatically after fault condition is removed
Over-voltage 105%---150% Rated Voltage, Protection type: Shut off
High-temperature RTH3>=65°C FAN ON<=55°C FAN OFF>=80°C Cut off output(5~15V)
Environment Working temperature and humidity -10°C~+50°C,   20~90%RH
Store temperature and humidity -20°C~+85°C,   10~95%RH
Temperature coefficient ±0.03%°C(0~50°C)
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,EACH AXES
Safety Withstand voltage I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC
Isolation resistance I/P-O/P,I/P-FG,O/P-FG: 100M Ohms/500VDC
Standard CE EMC Standard EN55015:2013+A1:2015, EN61547:2009, EN61000-3-2:2014, EN61000-3-33:2013
CE LVD Standard EN61347-2-13:2014+A1:2017, EB61347-1:2015
ROHS Standard IEC 62321: 2013, EPA3050B:1996, EN1122:2001, EPA3052:1996, EPA3060A, etc.
Other Dimension 235*66*45mm (L*W*H)
Weight 0.75kg
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. I/P-O/P: Input and output interval,  I/P-FG: Input and enclosure,  O/P-FG: Output and enclosure
