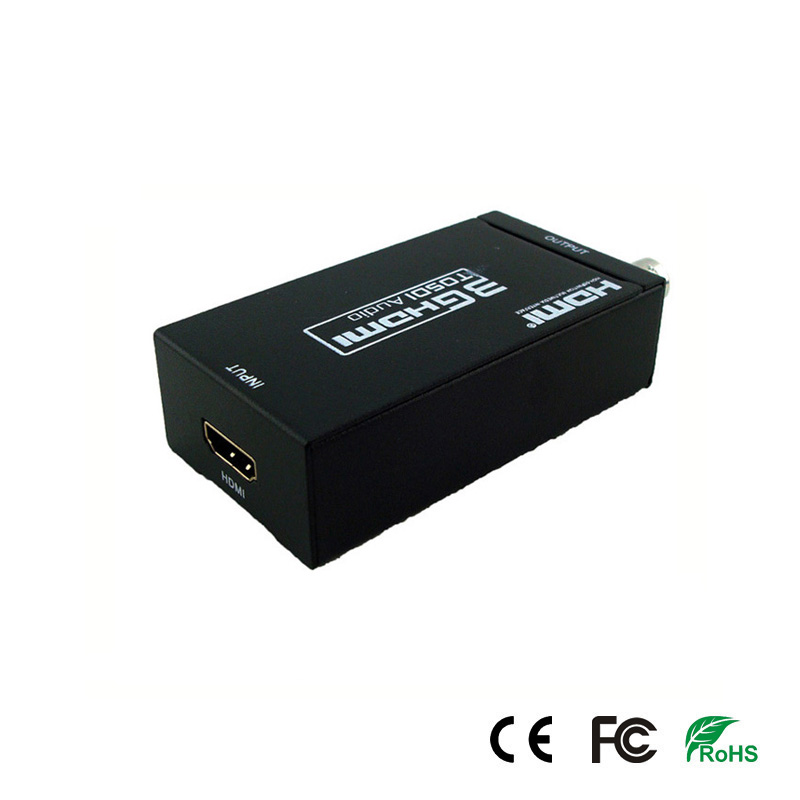

SVC-630

3G HDMI to SDI Converter
Shows HDMI source on SDI display
SDI interface operates at bitrates of 2.970 Gbit/s 2.970/1.001 Gbit/s 1.485 Gbit/s 1.485/1.001 Gbit/s and 270 Mb/s.
Supports HDMI input timings: 480i 59.94 576i 720p 50/59.94/60 1080i 50/59.94/60 1080p 23.98/24/25/29.97/30/50/59.94/60.
Converts HDMI signal to SDI:
-480i/576i to SD-SDI (SMPTE 259M-C at bitrates of 270 Mbit/s)
-720p/1080i to HD-SDI (SMPTE 292M at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
-1080p to 3G-SDI (SMPTE 424M/425M-AB at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
SDI Output Distance:
-100 meters (3G-SDI)
-200 meters (HD-SDI)
-300 meters (SD-SDI)

Specifications:
Input Port: 1 x HDMI
Output Port:1 x BNC (SDI/HD-SDI/3G-SDI)
Power Supply:   DC 5V -12V
Power Consumption (Max):5W
ESD Protection Human body model:±8kV (air-gap discharge) ,±4kV (contact discharge)
Dimension:80mm x 41mm x 25 mm
Weight:150g

Usage:
-SDI-OUT: This slot is where you connect the SDI display with coaxial cable.
-POWER LED: This red LED illuminate when the device is connected with power supply.
-DC IN: Plug the 5V-12V DC power supply into the unit.
-HDMI IN: This slot is where you connect the HDMI source with HDMI cable.
