10/100/1000Mbit POE Switch

  • SPE-G4204
  • SPE-G4204
  • SPE-G4204
  • SPE-G4204
  • SPE-G4204
SPE-G4204SPE-G4204SPE-G4204SPE-G4204SPE-G4204

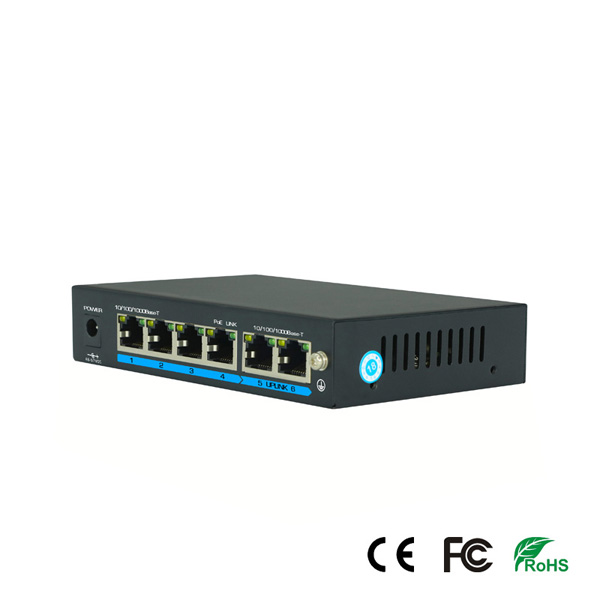

SPE-G4204

  • 6 Ports 10/100/1000Mbps Switch
  • 4*10/100/1000Mbps Poe Ports
  • 2*10/100/1000Mbps Uplink Port Poe Data & Power
  • Transmission Distance 100meters
  • Product description: ◆ 6x 10/100/1000Mbps auto-sensing RJ45 ports, 4x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port; ◆ Supports port auto-flip (Auto MDI/ MDIX); ◆ Maximum power of single PoE port: 15.4W/
  • INQUIRY

Feature:

6x 10/100/1000Mbps auto-sensing RJ45 ports,
4x 10/100/1000Mbps PoE ports, 2x10/100/1000Mbps uplink port;
Supports port auto-flip (Auto MDI/ MDIX);

Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af/at power on up to 4 ports;
With anti-theft lock;
Protection: Excellent anti thunder, anti static and anti-Interference;
External power supply,fanless,naturalcooling,small, compact and quiet design,suitable for desktop or wall


Specification

Model SPE-G4204
Power adapter voltage 48-57V DC
POE Ethernet port 1-4 port: 10/100/1000Mbps
Ethernet port 2*Uplink port: 10/100/1000Mbps
Transmission Distance 1-4 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard network cable
Network standard IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switching capacity 12Gbps
Packet Forwarding rate 8.93Mpps
MAC table 2K
POE Standard IEEE 802.3AF/AT
POE power supply type End-span (1/2+, 36-)
POE power consumption af=15.4W (each port), at=30W (each port)
Working temperature 0℃~55℃
Relative humidity 20~95%
Storage temperature -20℃~70℃
MTBF >30000h
