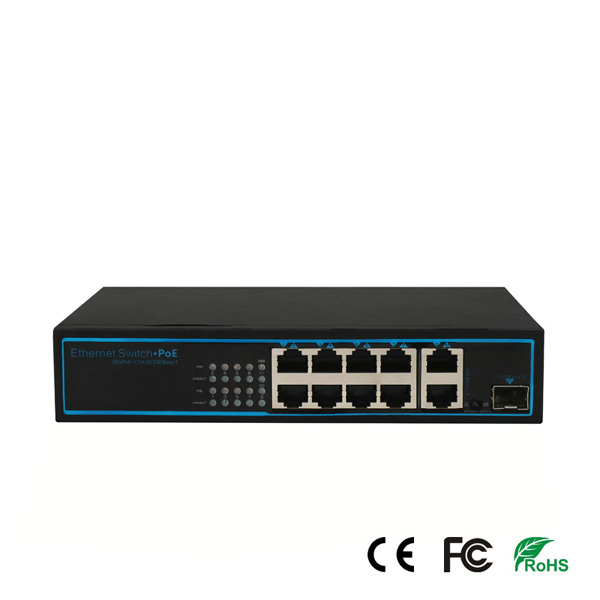

10/100Mbit POE Switch

SPE-4208BE

11 Ports 10/100Mbps Switch
8*10/100Mbps Poe Ports
2*10/100Mbps Uplink Port Poe Data & Power
1* 10/100/1000Mbps SFP port
Product description: ◆ 11x 10/100Mbps auto-sensing RJ45 ports, 8x 10/100Mbps PoE ports, 1x10/100/1000Mbps uplink port, 1x10/100/1000Mbps SFP port ◆ Supports port auto-flip (Auto MDI/ MDIX); ◆ Maximum power of singl
INQUIRY

Feature:

11x 10/100Mbps auto-sensing RJ45 ports,
8x 10/100Mbps PoE ports, 1x10/100/1000Mbps uplink port, 1x10/100/1000Mbps SFP port
Supports port auto-flip (Auto MDI/ MDIX);
Maximum power of single PoE port: 15.4W/30W;
Adopts store-and-forward architecture;
IEEE 802.3af/at power on up to 8 ports;
With anti-theft lock;
Protection: Excellent anti thunder, anti static and anti-Interference;
Built in power supply,compact and quiet design,suitable for desktop or wall

Specification

Model	SPE-4208BE
Power adapter voltage	48-57V DC
POE Ethernet port	1-8 port: 10/100Mbps
Ethernet port	Uplink port: 10/100/1000Mbps, SFP port: 10/100/1000Mbps
Transmission Distance	1-8 port: 0-100m, uplink port: 100m, via Cat5/ 5e/ 6 standard network cable
Network standard	IEEE 802.3/ 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az
Switching capacity	4.8Gbps
Packet Forwarding rate	5.65Mpps
MAC table	2K
POE Standard	IEEE 802.3AF/AT
POE power supply type	End-span (1/2+, 36-)
POE power consumption	af=15.4W (each port), at=30W (each port)
Working temperature	0℃~55℃
Relative humidity	20~95%
Storage temperature	-20℃~70℃
MTBF	>30000h
