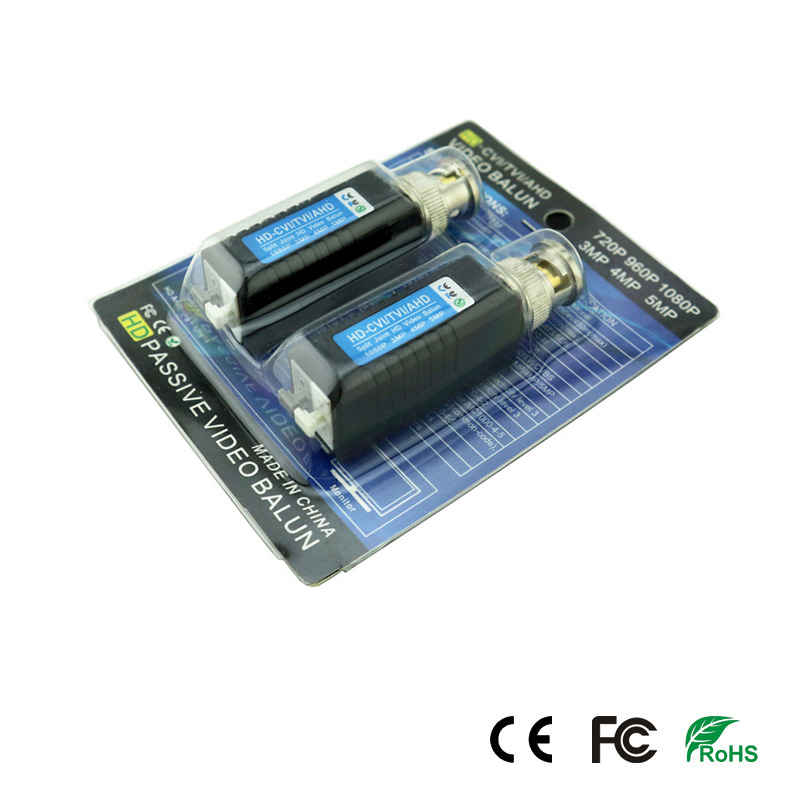

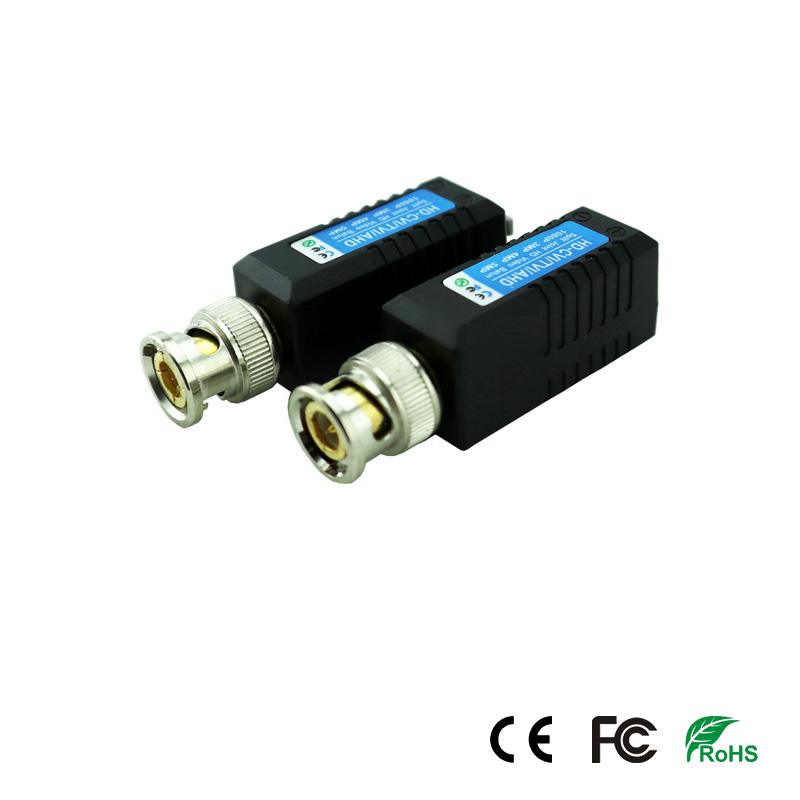

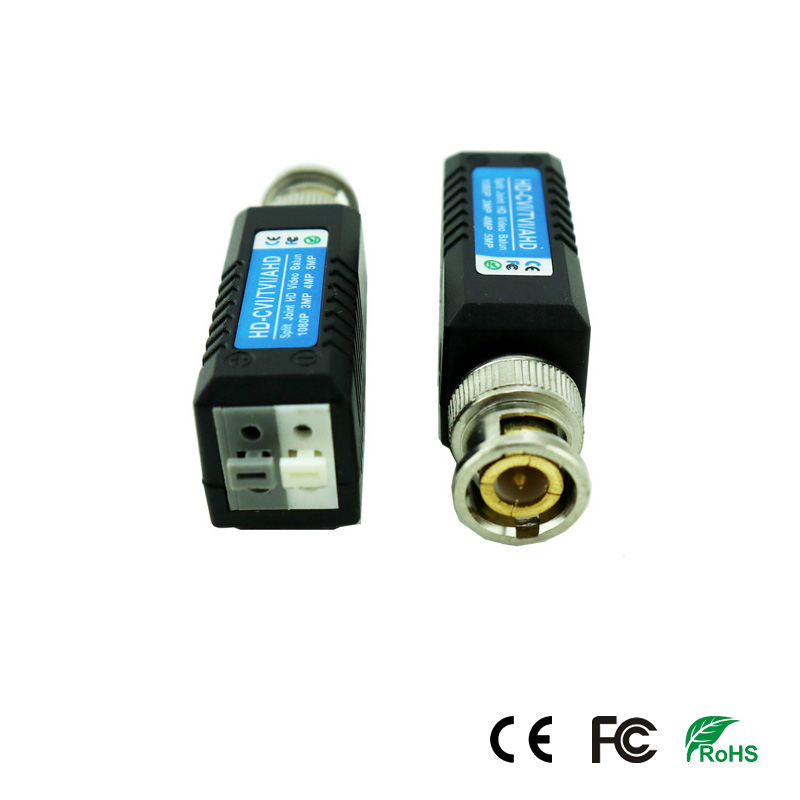

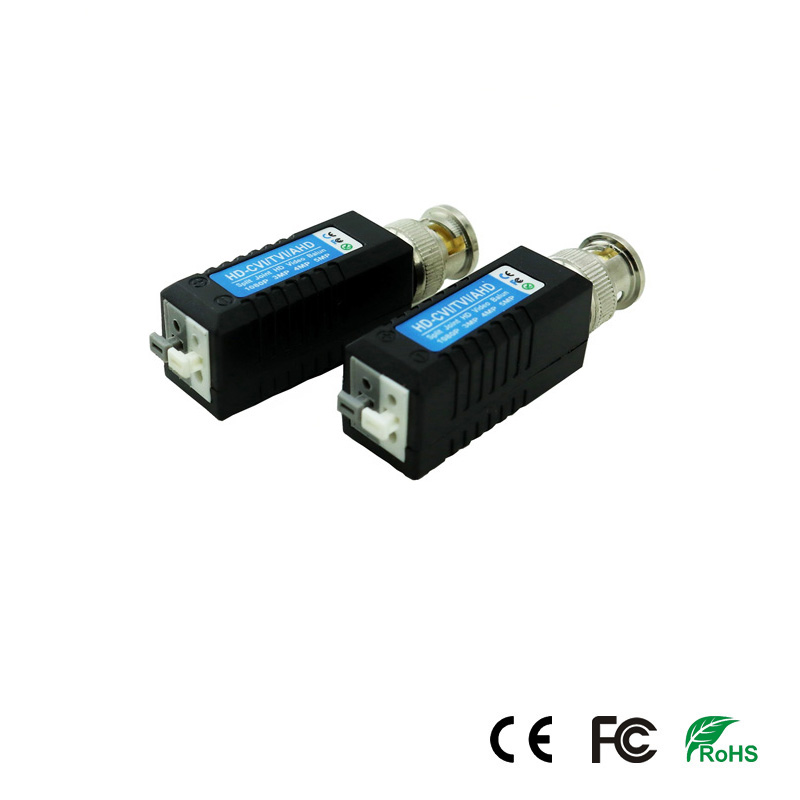

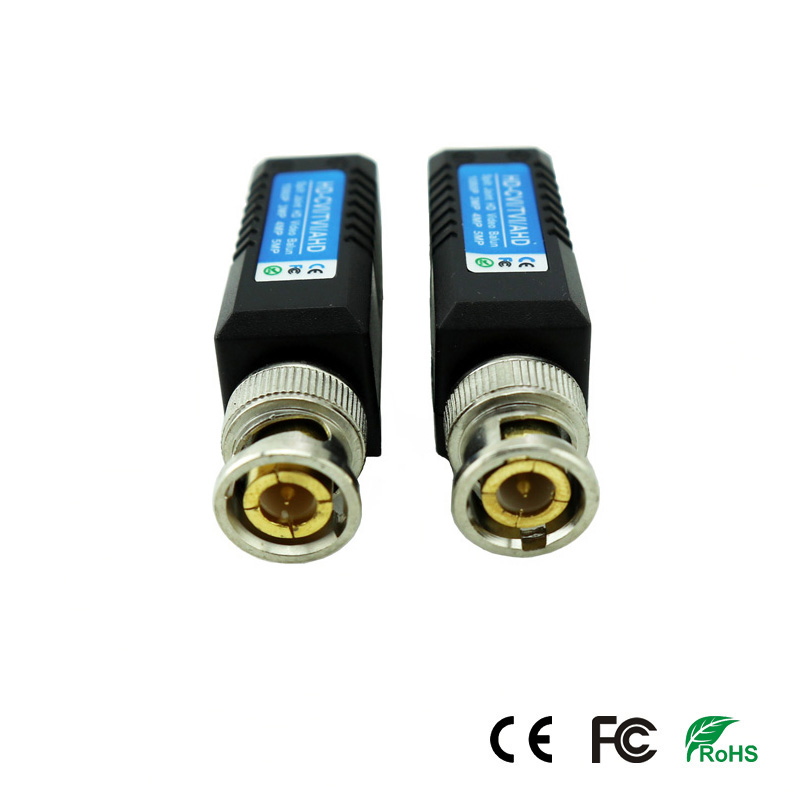

HD Passive Video Balun

  • SPB-113
  • SPB-113
  • SPB-113
  • SPB-113
  • SPB-113
SPB-113SPB-113SPB-113SPB-113SPB-113

SPB-113

  • HD-CVI/ TVI/ AHD & CVBS
  • 1080P/ 3MP/ 4MP/ 5MP/ 8MP
  • Built in solid state TVS for surge protection
  • No power required
  • Product description: HD Video Balun Compatible with all HD-CVI/TVI/AHD & CVBS, Support 1080P/ 5MP & 8MP, Built in solid state TVS for surge protection
  • INQUIRY

Feature:

1. Compatible with all HD-CVI/ HD-TVI/ HD-AHD & CVBS
2. Up to 450m for 720P CVI Cameras
3. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
4. Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
5. Up to 350m for 720P/ 960P AHD Cameras
6. Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras
7. NTSC, PAL and SECAM video formats
8. No power required
9. 60dB crosstalk and noise immunity
10. Compact size and easy installation
11. Built in transient suppression protection
12. innovative combinable design


Specification:

Model

SPB-113

Balun Type

Passive

Video transmitting distance

Up to 450m for 720P CVI Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP CVI Cameras
Up to 250m for 720P/ 1080P/ 3MP/ 4MP/ 5MP TVI Cameras
Up to 350m for 720P/ 960P AHD Cameras
Up to 250m for 1080P/ 3MP/ 4MP/ 5MP AHD Cameras

Video Formats

NTSC, PAL, SECAM

Crosstalk & noise immunity

60dB

Surge protection

4KV, ESD:8KV

Frequency Response

DC to 60Mhz

Wire Type

Unshielded Cat-5 or above twisted pair wire

Impedance

BNC:75 ohms; Terminal: 100 ohms

Working temperature

-10°C to +70°C

Storage Temperature

-10°C to +70°C

Humidity

0 to 95%

Material

ABS engineering plastic
