SPA-1206-8A

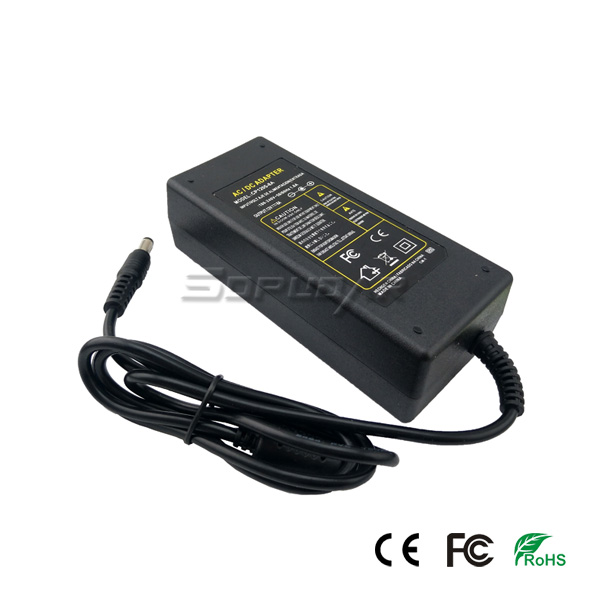

  • 96W Output Power Adapter
  • DC12V 8A
  • 100% full load burn-in test
  • Product description: The power adapter can provide 96W output constantly. It is featured with high efficiency. It is very suitable for application of CCTV security system, IT equipment, consumer electronics, home appliance
  • INQUIRY

Features:

1. 96W CCTV DC Power Adapter

2. Output voltage & current: DC12V 8A

3. Input voltage range: 85~264VAC

4. Built in EMI filter with tiny ripple

5. 100% full load burn-in test

6. Air Cooling

7. Protection: Short circuit/ Overload/ Over voltage/ Over temperature;


Specification:

Model SPA-1206-8A
DC voltage 12V±5%
Rated Current 8A
Efficiency 85% min
Setup Rise Time 1000MS 50MS/230VAC 1000MS 40MS/115VAC
Hold Time(TYP.) 20MS/230VAC 20MS/115VAC
Voltage Range 85VAC-264VAC
Frequency Range 50-60HZ
Efficiency 85% min
Leak Current <3.5MA/230VAC 115VAC
Over Load Rated Output Power 105-140%
Over Voltage Rated Voltage 140%
Short Circuit Load automatically after fault conditin is removed to restore
Working Temperature -20°C~+65°C
Working Humidity -10%~85% RH
