Support HDMI 1.4b
Support 3D video format
Resolution up to 3840x2160/30Hz
Support 3.2Gbps data rate for TMDS clock up to 320MHz
Support deep color 8/10/12bit
Support AWG26 HDMI standard cable:
when the resolution is 1080p and below, input up to 15 meters,output up to 25 meters.
when the resolution is 4K, input up to 12 meters, output up to 15 meters.
Support displaying single source, multi-output high-definition signal source from DVD player A / V receiver, set-top box
Need DC 12V/5A power supply
Operating and Connecting:
1. Connect 1 HDMI cable from HDMI source devices into HDMI Splitter input.
2. Connect 16 HDMI cables from each displayers (monitors or projectors) into the HDMI Splitter outputs.
3. Connect 12V power supply to the HDMI Splitter 1x16.
The Package includes

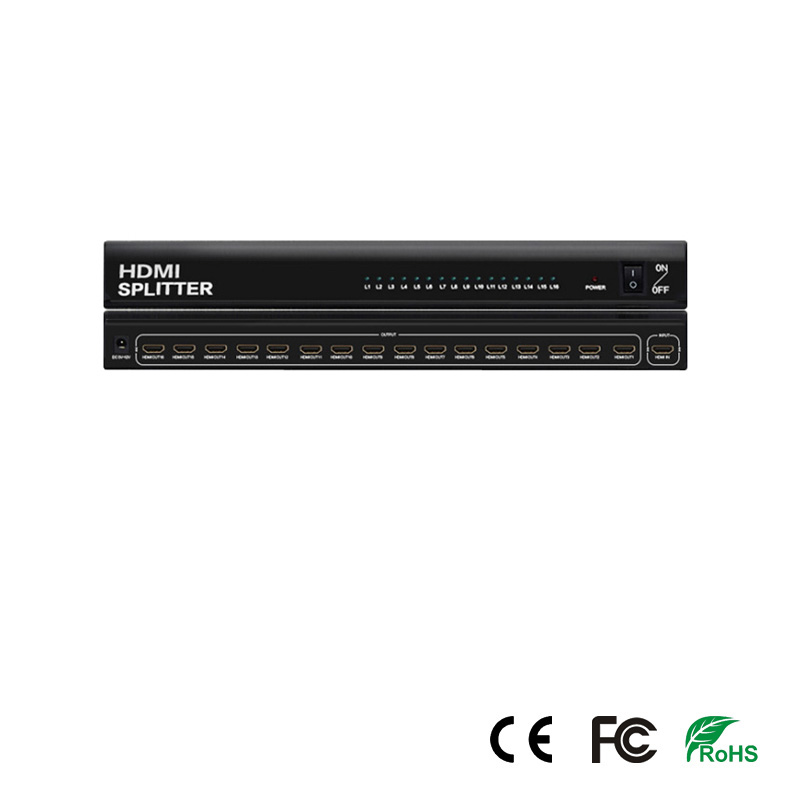

1. HDMI splitter 1X16
2. 12V DC Power Supply
3. User Manual
