HDMI Extender

  • SHE-030F
  • SHE-030F
  • SHE-030F
  • SHE-030F
  • SHE-030F
SHE-030FSHE-030FSHE-030FSHE-030FSHE-030F

SHE-030F

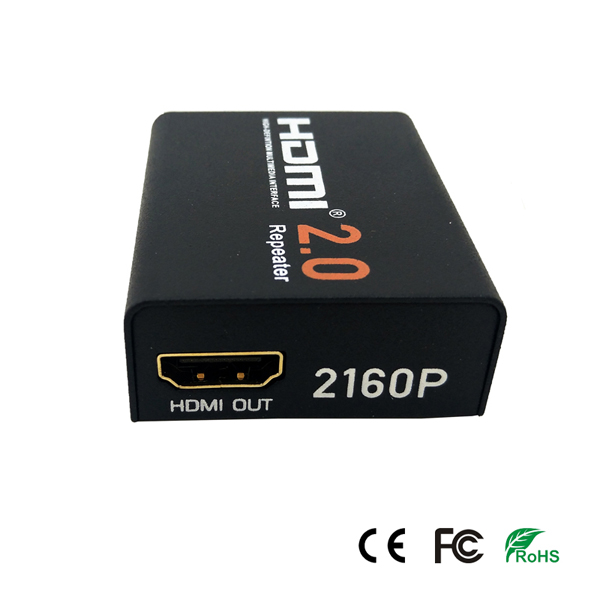

  • HDMI 2.0 Repeater by 15-30 Meter
  • Compliant with HDMI 2.0
  • 4K*2K
  • Support HDCP 2.2
  • Product description: HDMI 2.0 Repeater by 15-30 Meter, Compliant to HDMI 2.0, Serial data rate up to 6.0 Gbps; Supporting ultra-high resolution 4K/2K @ 60 Hz format; Support HDC*P 2.2; Supports 3D transmission; Size:52.8*
  • INQUIRY
Features:
HDMI 2.0 Repeater
Designed to decode and recode HDMI signal.
Long distance and no-loss signal transmission.
Supports HDMI2.0 and downwardly compliant.
Up to 6.0Gbps data speed, 4K/2K@60Hz resolution.
Supports HDCP2.2.
Supports 3D.
Input resolution is 4K/60Hz, RGB 4:4:4, AWG24 wire, 15m work range.
Input resolution is 4K/30Hz, RGB 4:4:4, or 4K/60Hz RGB 4:2:0. Standard HDMI2.0, AWG24 wire, 20m work range.
Input resolution is 1080P/60Hz, Standard HDMI2.0, AWG24 wire, 30m work range.
No signal loss or delay.
Easy to install.

Specification:
Input Resolution: max 4K/60fps
Supported Color: 24bit/deep color 30bit/36bit
Audio Channel: 32CH
Max Bandwidth: 300MHz
Max Transfer Speed: 18Gbps
Max Work Current: 0.3A
Power Adapter: AC 100V-240V 50/60HZ, DC 5V/1A
Work Temperature: -10°C - 55°C
Storage Temperature: -20°C - 60°C
Work Humidity: 10% - 90% no congeal
Storage Humidity: 5% - 95% no congeal
Static Discharge Protection: ±8kV (air gap discharge), ±4kV (connector discharge)
Size: approx. 52.8 x 44.5 X 19.4 mm/2.08 X 1.75 X 0.76 in
Weight: approx. 60 g
