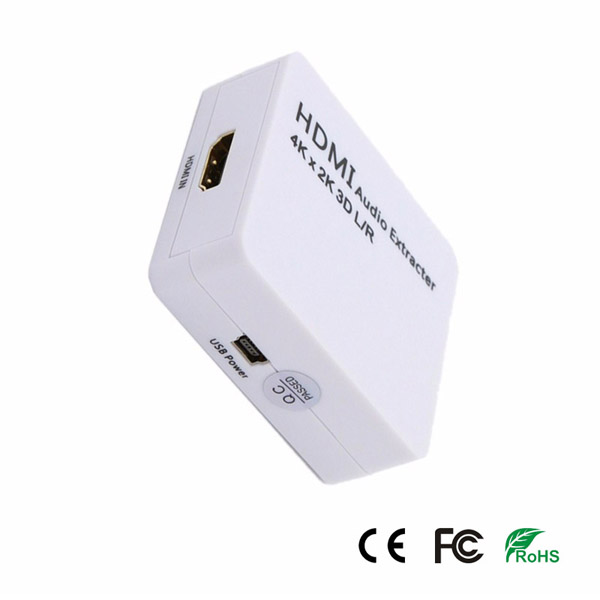

  • MINI HDMI to HDMI+Audio Converter
  • One HDMI input converter to one HDMI + R/L analog audio output
  • Up to 3840x2160@30Hz/ 4096x2160@30Hz;
  • Support HDMI1.4b
  • Product description: MINI HDMI to HDMI+Audio Converter, One HDMI input converter to one HDMI + R/L analog audio output; Input Resolution: Up to 3840x2160@30Hz/ 4096x2160@30Hz; Support HDMI1.4b, HDCP1.4; Support 24bits/dee
  • INQUIRY
MINI HDMI to HDMI+Audio Converter

Introduction
The MINI HDMI2HDMI AUDIO+ Audio converter increase the analog stereo audio output on the basis of the HDMI signal transmission. The analog stereo audio signal can be easily connected to the earphone or audio power amplifier.

Features
1. Convert one HDMI input to one HDMI + Audio(SPDIF + R/L)output.
2. Audio output supports: SPDIF + R/L analog Audio Output.
3. Input Resolution: Up to 3840x2160@30Hz/4096x2160@30Hz.
4. Supports 12-bit Deep Color Full HD,3D and 4K*2K video.
5. HDMI to achieve the synchronization of audio signal separation. There are 2.0CH/5.1CH two kinds of audio mode options.

Specifications
HDCP Version.................................................HDCP1.4
HDMI Version................................................HDMI1.4b
HDMI resolution..2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format.............24bits/deep color 30bit,36bit
Audio output...............................................L/R+SPDIF
Max bandwidth.................................................340MHz
Max baud rate................................................10.2Gbps
Input/ Output TMDS signal........................0.5-1.5Volts p-p(TTL)
Input/ Output DDC signal.............................5Volts p-p(TTL)
Input cable distance.................<=7m AWG26 standard cable HDMI
Output cable distance................<=8m AWG26 standard cable HDMI
Max working current............................................500mA
Operating temperature range..........................(-15 to +55°C)
Operating humidity range...............5 to 90% RH(NO Condensation)
Dimension (LxWxH)......................................60x55x20(mm)
Weight........................................................35g

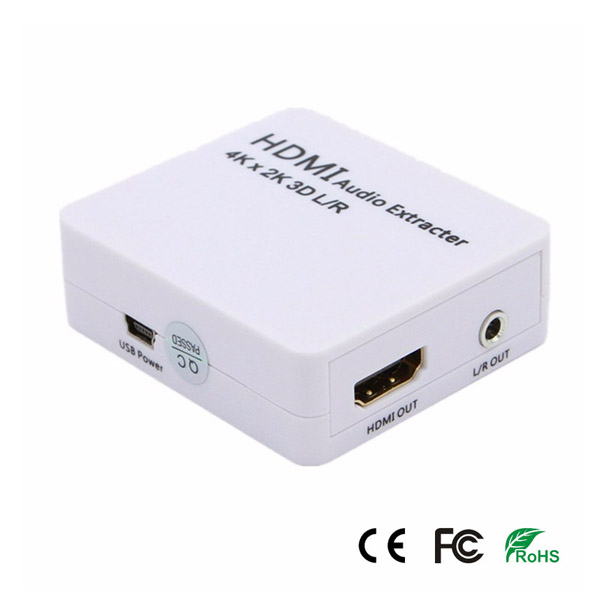

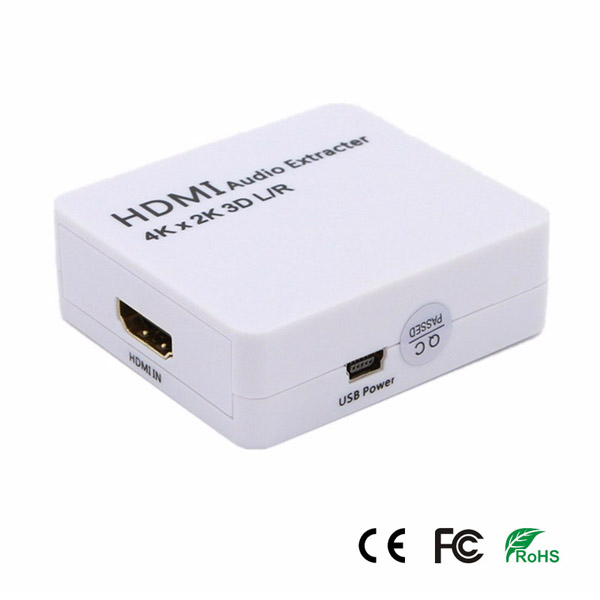

HDMI IN: HD audio video signal input interface which connect to input device.
Toslink: Digital audio output interface.
HDMI OUT: HD audio video output interface.
L/R OUT: Analog audio output interface.
USB/POWER:DC +5V Power supply interface.
2CH 5.1CH: Audio format EDID selection switch.
2CH When the witch is shifted to this position, the Toslink interface of the adapter will output 2ch digital audio signal L/R interface will output analog 2ch audio signal.
5.1CH: When the witch is shifted to this position, the Toslink interface of the adapter will output 5.1ch digital audio signal.

Note:
When select to this mode, whether the Toslink will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio. If it contains, Toslink interface will output 5.1 channel audio signal while headphone L/R interface output nothing. If it not contains, Toslink and earphone L/R interface are all output 2 channel audio signal.


Before installation, please make sure all devices you wish to connect have been turned off.

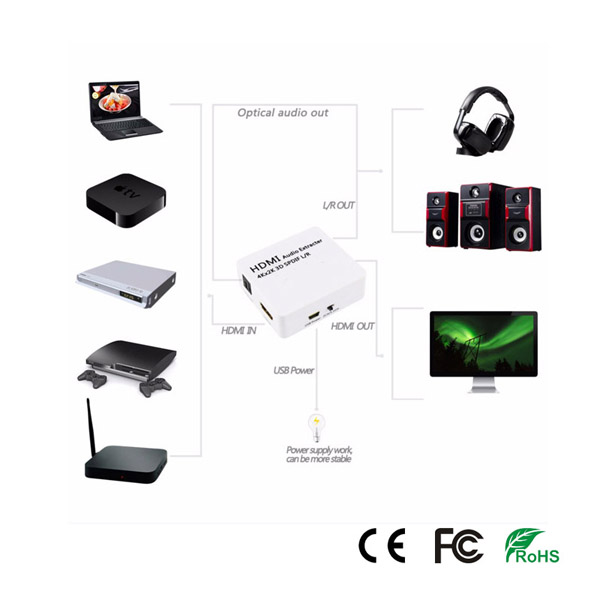

1. Use the HDMI cable to connect the HDMI input interface to the HD source device.
2. Use the HDMI cable to connect the HDMI output interface to the HD display.
3. Use the audio cable to connect the R/L interface to the audio equipment.
4. Use the optical cable to connect the SPDIF interface to the audio equipment
5. Use the 5V USB power cable to connect the converter to the 5V/1A USB plug.

Package Contents
1*Audio Extractor
1*5V USB Power Cable Optional
1*User Manual
